Modern apartment living in Bangladesh presents a universal culinary dilemma: compact kitchens, deep lower cabinets, and hard-to-reach storage zones. Installing high-performance cabinet pull out shelves eliminates dark corners, bringing every pot, spice jar, and daily cooking essential directly to your fingertips with a simple glide.
[!NOTE]TL;DR: Traditional fixed shelving forces you to bend down and hunt blindly through deep lower cabinets. Upgrading to full-extension cabinet pull out shelves maximizes usable storage volume by up to 40%, improves meal prep efficiency, and protects heavy cookware using heavy-duty soft-close runners.

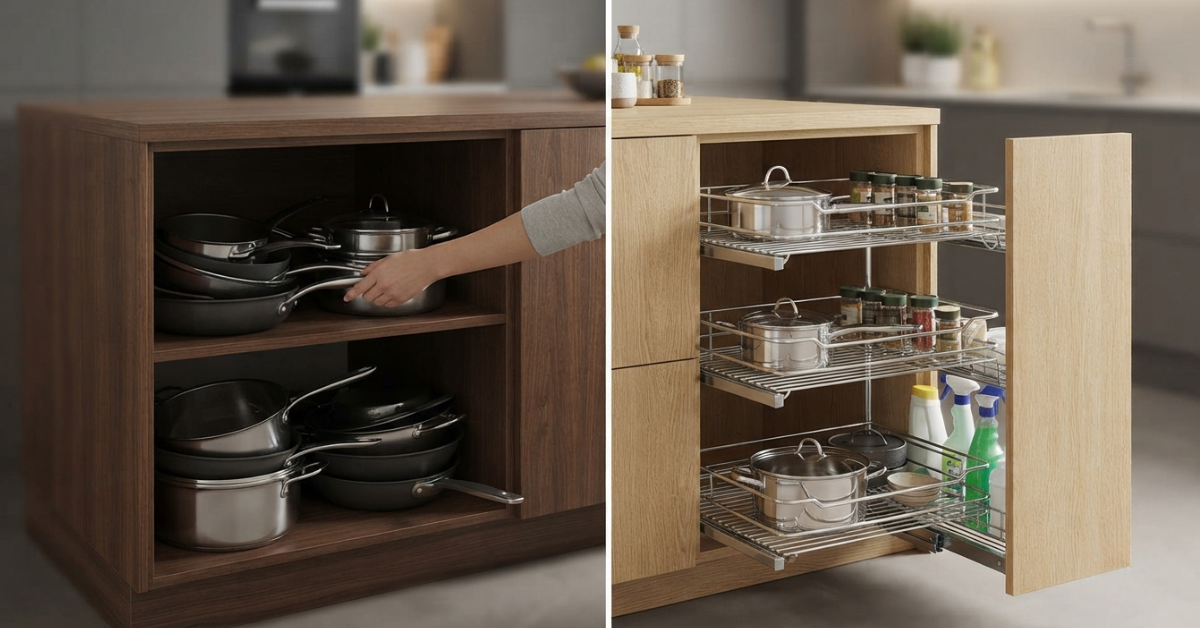

Core Technical Breakdown: Slide-Out vs. Fixed Cabinet Storage
Understanding how cabinets pull out shelves differ structurally from standard static shelves helps you choose the right hardware for your home.
pull out shelves
equipped with multi-tier stainless steel pull-out baskets.]
Feature / Dimension Traditional Fixed Shelving Integrated Pull-Out Shelving Depth Accessibility Limited to front 40% Full 100% full-extension access Load Handling Static load on middle panel Dynamic load via ball-bearing runners Ergonomic Impact Requires deep bending & stooping Standing height / light pull motion Space Utilization High vertical waste between shelves Tailored vertical tiers for specific items Cleaning Maintenance Difficult blind cleaning in rear Removable trays & wipeable steel tracks
Vertical Feature Breakdown: Pull-Out Hardware Engineering
- Full-Extension Undermount Runners: Modern systems utilize hidden undermount slides rated for 30 kg to 50 kg dynamic weight limits. These allow the entire shelf to clear the cabinet pull out shelves nface without sagging.
- Integrated Soft-Close Dampeners: Hydraulic mechanisms catch the drawer slide during the final few inches of travel, preventing heavy glass jars or clay pots from slamming together.
- Side Frame Adjustability: Adjustable clip-on frames allow homeowners to raise or lower individual basket heights to fit tall oil bottles or stackable stainless steel pans.
Architectural cabinet pull out shelves Frameworks: Selecting the Right Base Material
Before installing internal hardware, you need a solid cabinet pull out shelves to carcass that withstands daily weight loads and regional humidity.
Wooden cabinet pull out shelves
Crafted from natural hardwood or high-density engineered wood (such as commercial plywood with high-pressure laminate finishes), wooden cabinet pull out shelves offer classic structural integrity.
They handle heavy daily loads effortlessly and fit spacious, traditional, or high-end contemporary layouts.
PVC & Synthetic Board Cabinets
PVC cabinets are popular in modern apartment developments due to their complete resistance to water, dampness, and termite damage.
These synthetic board options are lightweight, budget-friendly, and simple to clean with standard microfiber cloths.
Modular Cabinets
Factory-engineered modular cabinets feature standardized dimensions designed to accept off-the-shelf slide-out accessories.
They deliver quick installation timelines, smooth alignment, and easy long-term maintenance.
Custom-Built On-Site cabinet pull out shelves
Tailored directly on-site to fit non-standard room layouts, awkward structural columns, or floor-to-ceiling proportions. Custom carcasses maximize every available millimeter in tight apartment footprints.
Essential Pull-Out Accessories for High-Efficiency Kitchens
Modern kitchens rely on targeted internal hardware to handle different categories of cookware and dry pantry items.
| UPPER & LOWER STORAGE ZONES |
| SPICE & BOTTLE ZONES | | HEAVY COOKWARE ZONES |
| – 2-Tier Side Drawers | | – Plain Wire Baskets |
| – Slim Pull-Out Racks | | – Elevator Pull-Downs |
| CORNER OPTIMIZATION |
| – 180° / 270° Revolving Baskets |
| – Blind Corner Magic Pull-Outs |
+—————————————+
1. Multi-Tier Side Pull-Out Baskets
Narrow gap spaces (150 mm to 300 mm wide) beside gas stoves often turn into wasted dead zone gaps.
Installing a 2-layer side drawer basket converts these tight spaces into dedicated organizer racks for cooking oils, sauce bottles, and spice containers.
2. Heavy-Duty Plain Wire & Plate Baskets
Deep base cabinets under cooktops are ideal for storing heavy dekchi cookware, pressure cookers, and serving bowls.
Multi-purpose wire baskets with soft-close channels keep heavy items steady and accessible without requiring you to move front items out of the way.
3. Blind Corner Solutions
Corner cabinet pull out shelves present storage challenges because items slide into dark back corners. Installing 270-degree revolving baskets.
S-shaped magic corner mechanisms swings internal shelving outward when you open the door, turning dead corners into active storage space.
4. Vertical Pantry Towers
Tall pantry units with multi-layer wire baskets use full ceiling height effectively. A single pull smoothly extends six or more internal shelves simultaneously, giving you a clear view of your household dry groceries from both sides.
Designing for Humidity and Heavy Usage in Bangladesh
Kitchen environments across South Asia experience unique operational strains, from high ambient humidity to heavy stainless steel and cast-iron cookware.
Anti-Corrosion Material Selection
Standard chrome plating can degrade over time when exposed to steam, salt, and spice residues.
Opt for food-grade SS304 stainless steel or powder-coated alloy wire frames. Stainless steel resists rust, maintains structural rigidity under heavy weight, and cleans easily.
Weight Distribution and Runner Capacities
A typical Bangladeshi household stores heavy mortar-pestle sets, heavy-bottomed biryani pots, and large rice containers inside base units. Check dynamic weight ratings before installing pull-outs:
- Slim Spice Drawers: 15 kg to 20 kg dynamic load capacity.
- Base Pot & Dish Baskets: 30 kg to 35 kg dynamic load capacity.
- Tall Pantry Towers: 70 kg to 100 kg total rack rating.
Pro Tip: Never mount heavy pull-out runners directly into low-density particle boards without reinforcement plates. The high pull force will loosen screws over time, causing the drawer front to drop out of alignment.
Step-by-Step Practical Layout Guide for Compact Apartments
Follow this layout strategy when planning your kitchen renovation to ensure optimal workflow and spatial efficiency.
Step 1: Establish Main Activity Work Zones
Divide your kitchen into three functional zones: Prep, Cooking, and Cleaning.
Place your spice and sauce pull-outs within arm’s reach of the cooktop, keep trash pull-outs near the sink, and assign deep cookware baskets beneath the main prep counter.
Step 2: Measure cabinet pull out shelves Carcass Clearances
Measure internal cabinet pull out shelves dimensions carefully, rather than relying on external frame sizes.
Deduct hinge projection clearances (typically 20 mm to 35 mm) to ensure slide-out baskets pass internal door hinges without scraping.
Step 3: Install Heavy-Duty Base Runners
Secure full-extension runners squarely along internal side panels or bottom base boards. Use a spirit level during installation; even a minor 2 mm tilt causes heavy drawers to drift open or catch on internal frames.
Step 4: Mount Specialized Organizers
Attach dedicated organizers like dish divider racks, cutlery partitions, and bottle holders. Secure internal divider pegs so heavy cookware stays in place when drawers open and close quickly.
Maintenance Protocols for Long-Term Gliding Smoothness
Preventative care keeps pull-out shelving operating smoothly for years.
- Quarterly Track Lubrication: Clean dust and flour residue from ball-bearing drawer slides using a soft brush, then apply a light spray of food-grade silicone lubricant.
- Fastener Inspections: Check mounting screws on soft-close dampeners and drawer fronts twice a year to ensure they remain tight.
- Moisture Management: Use drip trays beneath dish-drying pull-outs to prevent water droplets from pooling on lower cabinet pull out shelves timber or laminate surfaces.
Common Mistakes to Avoid When Upgrading Kitchen Storage
Avoid these frequent planning and installation mistakes to ensure a long-lasting cabinet setup:
- Prioritizing Cabinet Price Over Hardware Quality: Cheap, non-branded drawer runners rust quickly in warm, humid kitchens and can seize up under heavy loads.
- Ignoring Door Hinge Clearance: Forgetting to calculate how far open cabinet doors swing can prevent internal pull-out baskets from sliding outward smoothly.
- Overloading Shelf Weight Limits: Concentrating heavy items in the center of wide wire baskets causes structural bowing and strains side runners.
- Neglecting Sink-Area Moisture Protections: Placing unprotected wooden drawers directly beneath plumbing joints risks swelling and mold growth if water leaks occur.
