Modular Pantry Cabinets Managing a busy kitchen in urban centers like Dhaka or Chattogram requires balancing high daily cooking volume with compact apartment layouts. Installing modular pantry cabinets turns cramped, disorganized shelving into an ergonomic storage powerhouse capable of handling heavy cookware.
Complete Architecture of Modular Pantry Systems

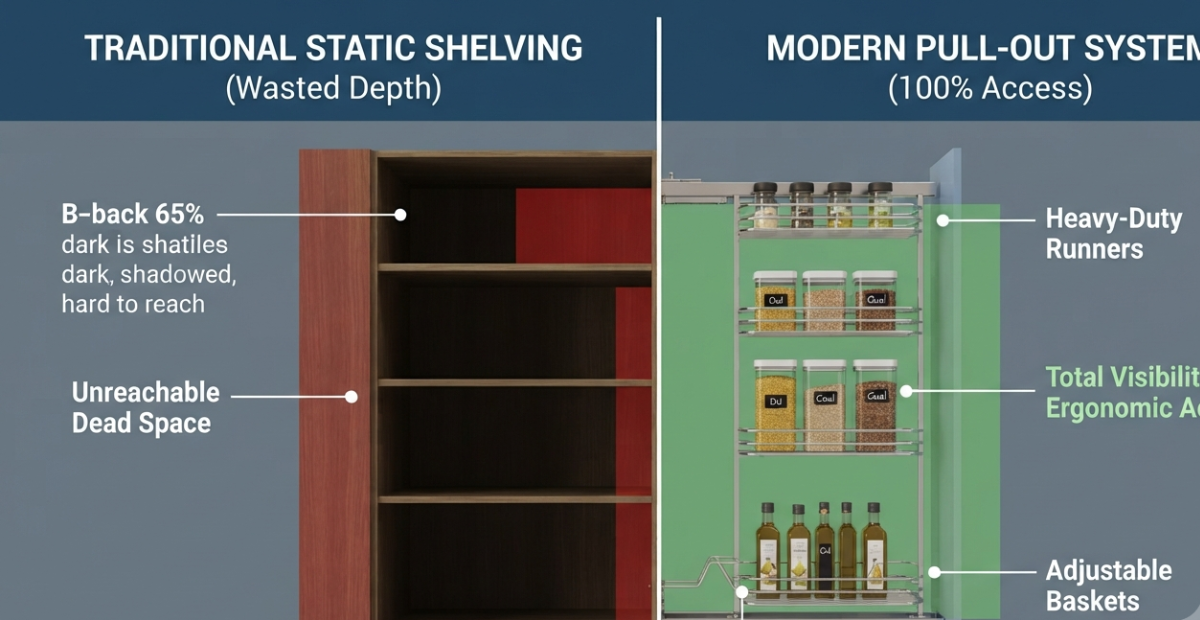

Modular Pantry Cabinets A well-designed modular pantry cabinet functions as the central engine of kitchen storage. Standard depth cabinetry often creates dead zones where items disappear into dark back corners.
Tall Pull-Out Larder Units
Modular Pantry Cabinets Full-height vertical pull-outs maximize narrow floor spaces while delivering massive storage volume.
- Weight Capacity: Heavy-duty slide systems support 70 kg to 120 kg of total grocery load.
- Vertical Flexibility: Height-adjustable baskets accommodate tall oil jars, bulk flour bags, and stacked containers.
- Dual Access: Open wire frames allow full visibility and side access from both left and right directions.
Corner Carousel & Magic Corner Systems
Modular Pantry Cabinets Blind corner cabinets traditionally represent the most wasted area in L-shaped and U-shaped kitchen layouts.
- Magic Corner Units: Synchronized sliding trays swing forward in a smooth S-curve motion.
- 180 & 270-Degree Revolving Baskets: Rotating semi-circular trays allow quick rotation for heavy saucepans and spice containers.
Multi-Tiered Base Drawer Organizers
Modular Pantry Cabinets Lower counters handle high-frequency items needed during active cooking cycles.
- Perforated Cutlery Trays: Stainless steel dividers organize spoons, spatulas, and knives without trapping dust.
- Spice & Oil Bottle Pull-Outs: Slim 150mm to 300mm base pull-outs keep everyday liquid seasonings upright and spill-free.
- Under-Sink Organizer Racks: U-shaped wire baskets fit around plumbing pipes to store cleaning supplies safely.
Technical Specifications: Selecting Durable Hardware for High Humidity
Modular Pantry Cabinets Bangladeshi kitchens experience intense ambient humidity, high moisture levels from dishwashing, and frequent exposure to airborne cooking oil.
| Hardware Feature | Standard Commercial Grade | Recommended SS304 Marine Grade |
| Material Composition | Electroplated Mild Steel (MS) | SS304 Stainless Steel (18/8 Nickel-Chromium) |
| Rust & Corrosion Resistance | Poor (Rusts in high humidity within 6-12 months) | Exceptional (Impervious to water, steam, and salt air) |
| Runner Mechanism | Friction rollers or basic ball bearings | Soft-close concealed synchronization slides |
| Weight Endurance | 15 kg – 25 kg per drawer | 35 kg – 60 kg per individual basket |
| Maintenance Need | Frequent anti-rust coating & oiling | Periodic wipe-down with damp microfiber cloth |
Pro Tip: Always verify that internal baskets use authentic SS304 stainless steel rather than basic chrome plating. Basic electroplated steel corrodes rapidly when exposed to humid weather or wet spice jars.
Modular Pantry Cabinets To guarantee long-term performance, invest in smooth-sliding soft-close runners.
Solving Local Kitchen Challenges in Bangladesh
Modular Pantry Cabinets Traditional Bangladeshi culinary prep involves high volumes of fresh ingredients, heavy iron cookware, and large sacks of staple grains like rice and lentils.
Managing Heavy Bulk Storage & Rice Bags
Modular Pantry Cabinets Large families frequently buy 10kg to 25kg bags of rice and flour. Storing these sacks on lower floors attracts pests and creates back strain.
- Reinforced Base Baskets: Heavy-gauge wire baskets easily withstand concentrated load points from metal grain containers.
- Integrated Rice Containers: Dedicated airtight pull-out bins protect raw grains from humidity and insect infestation.
Taming Large Spice Collections
Modular Pantry Cabinets A typical Bangladeshi pantry holds over twenty distinct ground and whole spices alongside cooking oils, mustard oil, and ghee.
- Tiered Spice Rack Drawers: Angled trays keep spice labels facing upward for rapid identification.
- Wipeable Drip Trays: Removable tray liners collect oil drips and powder spills, protecting raw cabinet wood beneath.
Smoke & Oil Grease Protection
Modular Pantry Cabinets High-heat frying and spices release microscopic grease droplets into ambient kitchen air. Unprotected internal shelving quickly develops a sticky grease coating.
- Concealed Pantry Enclosures: Tall cabinet doors with dust-seal strips keep stored dry food items pristine.
- Slim Overhead Chimney Hoods: High-suction exhaust systems keep surrounding cabinet surfaces completely clean.
Smart Storage Strategies for Small Apartment Kitchens
Modular Pantry Cabinets Apartment floor plans in Dhaka frequently restrict kitchen footprints to narrow galley layouts or small L-shaped corners.
+——————————————————————-+
| VERTICAL KITCHEN STORAGE ARCHITECTURE |
+————————–+—————————————-+
| Ceiling-Height Cabinets | Seasonal items, large party pots |
+————————–+—————————————-+
| Upper Eye-Level Shelves | Daily spices, glassware, tea/coffee |
+————————–+—————————————-+
| Main Countertop Zone | Active prep surface (Zero storage) |
+————————–+—————————————-+
| Lower Drawer Pull-Outs | Heavy cookware, dal pots, daily oil |
+————————–+—————————————-+
| Toe-Kick Base Drawers | Flat baking trays, extra dish towels |
+————————–+—————————————-+
Strategic Vertical Elevation
Modular Pantry Cabinets Standard counter-height cabinets waste valuable air space above top shelves. Extending cabinetry directly to the ceiling structure unlocks 30% additional storage capacity.
- Upper Drop-Down Baskets: Pull-down mechanical elevator racks lower overhead contents down to eye level effortlessly.
- Under-Cabinet Hanging Tracks: Mounting stainless steel rails beneath upper cabinets keeps spatulas and strainers off counter surfaces.
- Slim Vertical Slide-Outs: Narrow 150mm gaps beside refrigerator alcoves accommodate dedicated tall oil and condiment racks.
Converting Dead Space into Usable Zones
Modular Pantry Cabinets Small floor plans cannot afford unutilized structural cavities. Specialized hardware turns awkward structural posts and blind corners into functional storage hubs.
- Splashback Rail Systems: Wall-mounted stainless steel grid panels convert bare backsplash tile into organized holding zones for cutting boards.
- Under-Sink Waste Baskets: Pull-out double waste bins attached to sink cabinet doors streamline garbage disposal while keeping floor area open.
Step-by-Step Installation & Cabinet Planning Guide
Modular Pantry Cabinets Installing modular pantry hardware requires precise internal measurements and proper structural carcass preparation.
1.Measure Internal Carcass Dimensions:Accuracy within 1 millimeter required.
Measure the exact internal width, internal depth, and internal clear height of your cabinet carcass.
2.Verify Carcass Squareness and Wall Plumb:Check corner angles with a framing square.
Ensure internal cabinet corners form precise 90-degree angles. Out-of-square carcasses cause pull-out frame binding and uneven soft-close dampening.
3.Mount Heavy-Duty Base Slide Rails:Secure into solid plywood framing.
Anchor lower slider rails directly into solid wood or high-density marine plywood frames using heavy-gauge stainless steel screws. Avoid mounting structural runners into low-density particle board.
4.Attach Vertical Frame and Adjust Baskets:Test smooth extension under load.
Mount the main vertical frame onto the sliding runners. Secure individual wire baskets at customized height intervals based on your actual grocery container heights.
5.Align Cabinet Front Door Panel:Fine-tune 3D adjustment screws.
Attach cabinet door brackets to the pull-out frame. Use 3D adjustment screws on the main brackets to align door panel margins perfectly flush with surrounding cabinetry.
Warning: Never attach heavy pantry pull-outs directly to low-density particle board or unreinforced MDF panels. Heavy grocery weight will rip mounting screws out over time. Always specify core marine plywood for carcass construction.
Major Mistakes to Avoid When Planning Modular Storage
Modular Pantry Cabinets Selecting hardware based purely on aesthetics or price often leads to functional disappointment. Avoiding these common errors ensures long-term operational success.
1. Skipping Precise Internal Measurements
Purchasing accessories based on external cabinet dimensions is a frequent mistake. External dimensions include outer carcass wall thickness, which reduces actual internal clear width by 36mm to 38mm.
2. Overloading Frame Weight Limits
Exceeding rated drawer capacity warps ball-bearing slide channels and damages soft-close hydraulic dampers. Always calculate total load before placing heavy iron pans or 20kg grain sacks inside single baskets.
3. Choosing Incompatible Door Hinge Options
Standard 110-degree door hinges block internal pull-out baskets from extending fully. Installing a six layer tall unit basket requires zero-protrusion 155-degree wide-opening hinges or direct door-mounted front brackets.
4. Ignoring Cleaning & Maintenance Access
Wire baskets accumulate dust and spice crumbs over time. Select modular units with removable tray bases or quick-release basket clips to simplify monthly cleaning routines.
Comparing Essential Storage Hardware Solutions
Evaluating layout requirements against space constraints helps determine the ideal hardware selection for your home renovation.
| Storage Hardware Type | Primary Application | Usable Depth Efficiency | Ideal Kitchen Layout |
| Tall Larder Pull-Out | Central dry grocery store | 95% total depth utilization | Straight, Parallel, or Large U-Shape |
| Magic Corner System | Blind L-shape counter corners | 85% total corner space recovery | L-Shape or U-Shape layouts |
| Multi-Layer Base Drawers | Active cooking & spice zone | 90% easy-reach drawer volume | All kitchen layouts |
| Overhead Elevator Basket | High upper wall cabinets | 80% upper cabinet reachability | Compact urban apartments |
| Wall Splashback Racks | Daily utensil hanging | 100% vertical wall utilization | Galley or Single-Wall kitchens |
Maintaining Your Modular Hardware for Longevity
Modular Pantry Cabinets Proper maintenance guarantees that soft-close mechanisms and stainless steel wire frames operate smoothly for decades.
- Monthly Slide Cleaning: Vacuum dust and debris out of slide channels to prevent friction wear inside ball-bearing races.
- Silicone Lubrication: Apply food-grade silicone spray lubricant to telescopic runners every six months. Never use heavy engine oil or grease, which attracts kitchen dust.
- Neutral Cleanser Wipe-Down: Clean stainless steel wire baskets using mild dish soap and warm water. Avoid harsh bleach or acidic tile cleaners that damage protective metallic coatings.
Integrating modern storage solutions streamlines daily culinary routines. Installing a dedicated magic corner unit recovers dead corner space, while a heavy-duty cutlery basket organizer keeps prep tools separated.
By investing in high-grade SS304 materials and ergonomic pull-out hardware, you create an efficient, hygienic kitchen built for long-term convenience.
